User guide

DrowAI user guide

Product documentation for installing DrowAI, setting up Runner services, and understanding the main workspaces. Use it as a practical reference before running the application or preparing a task workflow.

Setup

0.6.0

Settings workspace

Download MD

A visual guide to the DrowAI Settings page and its API, Network, Runner Sites, System, Data Management, Display, and CVE subtabs.

Settings centralizes account-level and application-level configuration. Most operators should treat this page as a setup and administration area rather than part of the normal task execution workflow.

API

The API subtab manages provider-neutral LLM configuration and the Shodan API key. LLM provider settings control which models are available to chat and reporting features. Shodan configuration supports reconnaissance and OSINT operations when a valid key is provided.

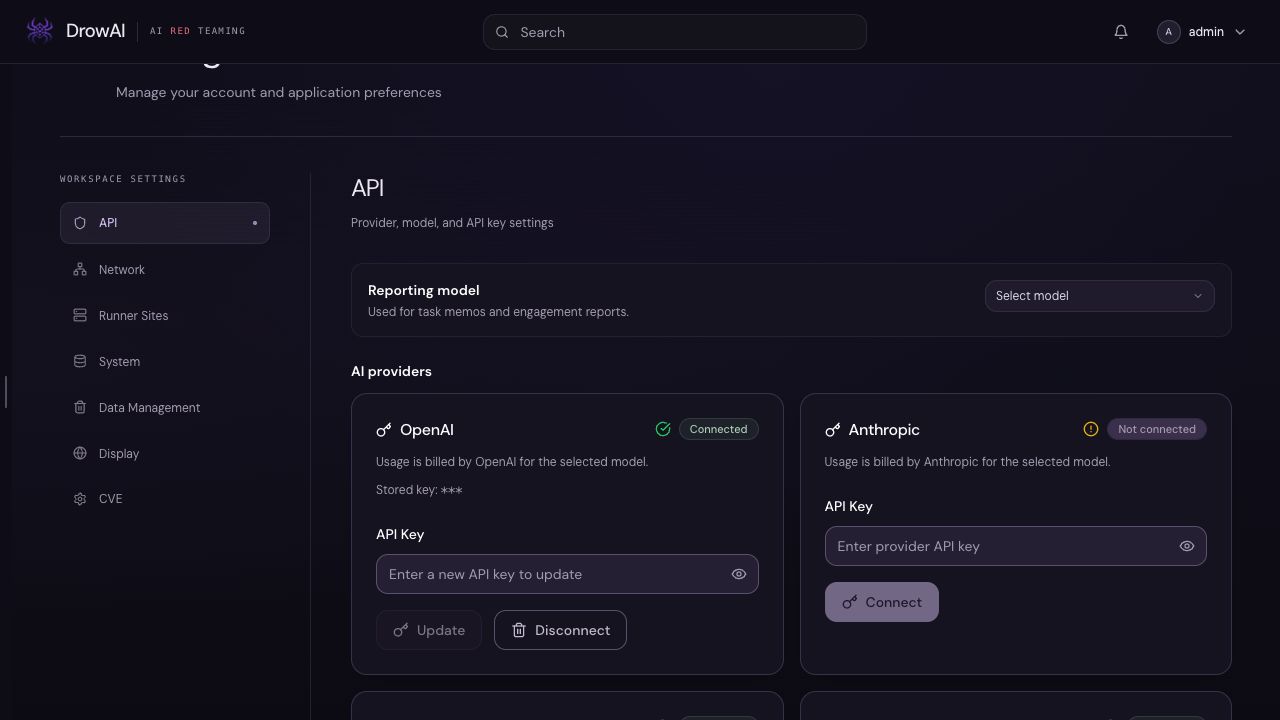

Annotated DrowAI Settings API subtab
  1. Settings navigation
  2. Reporting model
  3. Provider connections and API key fields

Network

The Network subtab presents network-related configuration concepts such as container isolation, VPN integration, rate limiting, SSH port range, and maximum concurrent containers. In the current application these controls are presentation-oriented settings, so operators should not rely on this tab as the source of task-specific VPN setup. Configure task VPN from the task creation flow.

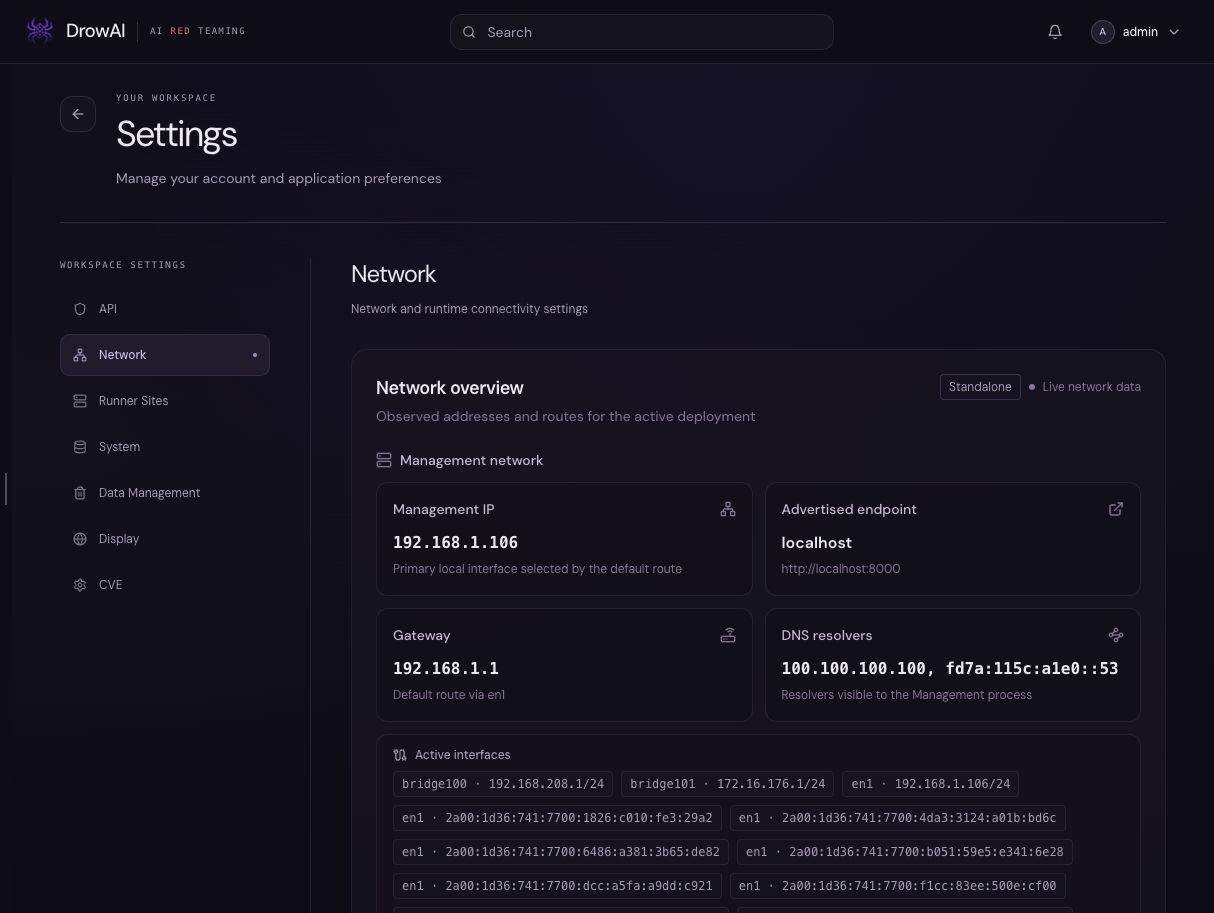

Annotated DrowAI Settings Network subtab
  1. Network settings
  2. Management addresses and routes
  3. Deployment mode and live data

Runner Sites

The Runner Sites subtab manages the Management URL and TLS certificate verification settings, shows registered sites and their connection readiness, and provides enrollment packages for new and existing Runner sites.

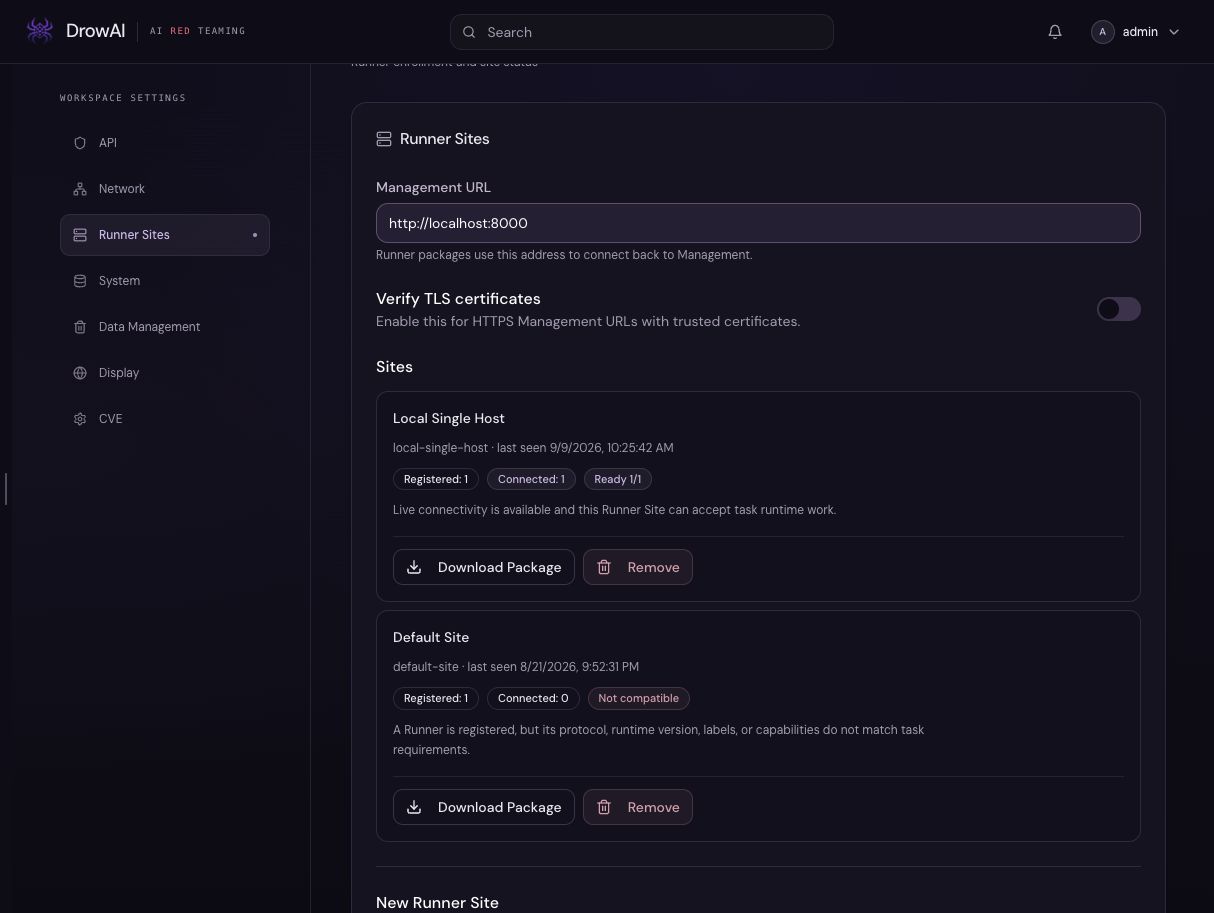

Annotated DrowAI Settings Runner Sites subtab
  1. Runner Sites settings
  2. Management URL and TLS verification
  3. Runner registration, connection, and readiness

System

The System subtab summarizes operational status and keeps destructive maintenance affordances separate from ordinary configuration. Treat this page as administrative context, not as a place to manage individual task output.

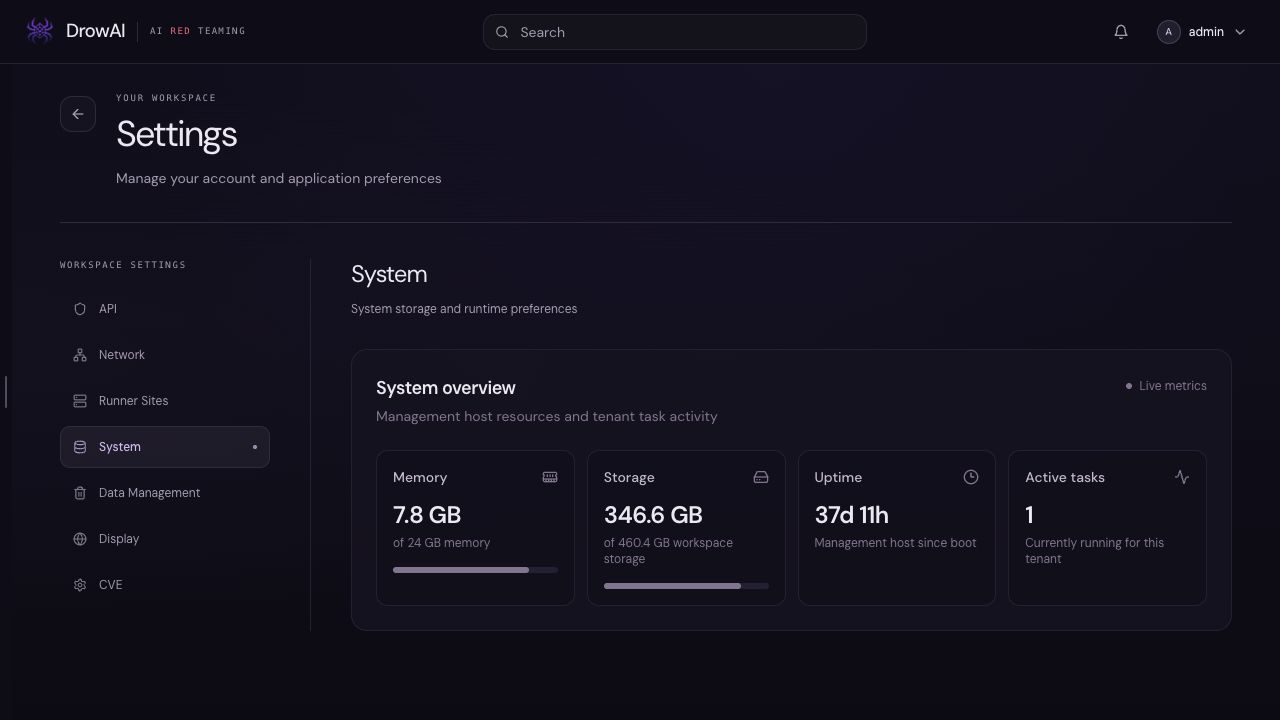

Annotated DrowAI Settings System subtab
  1. System settings
  2. Management host resources
  3. Tenant task activity

Data Management

The Data Management subtab defines tenant-level lifecycle policy for generated report data. The visible retention setting controls how long historical generated reports are retained. Current reports are preserved by automatic retention, and users with the right permission can still delete reports manually.

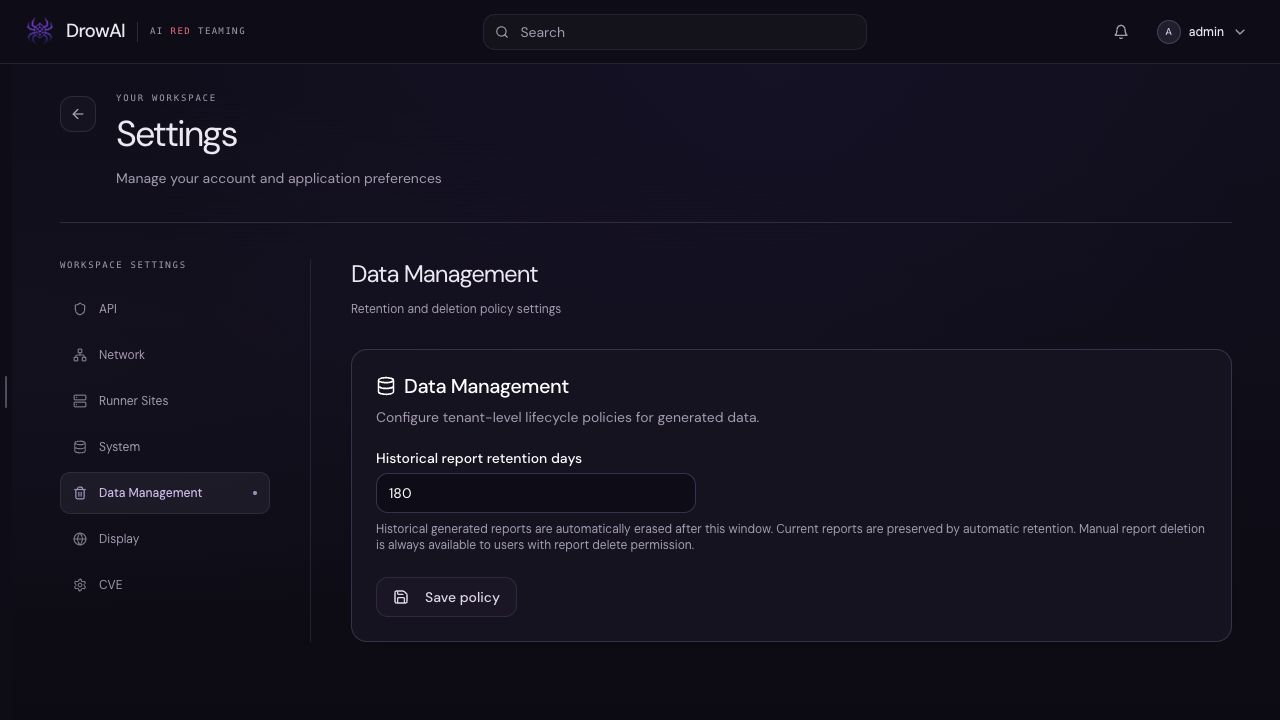

Annotated DrowAI Settings Data Management subtab
  1. Report retention window
  2. Save retention policy

Display

The Display subtab controls presentation preferences. The main setting is the timezone used for dates and times across the application.

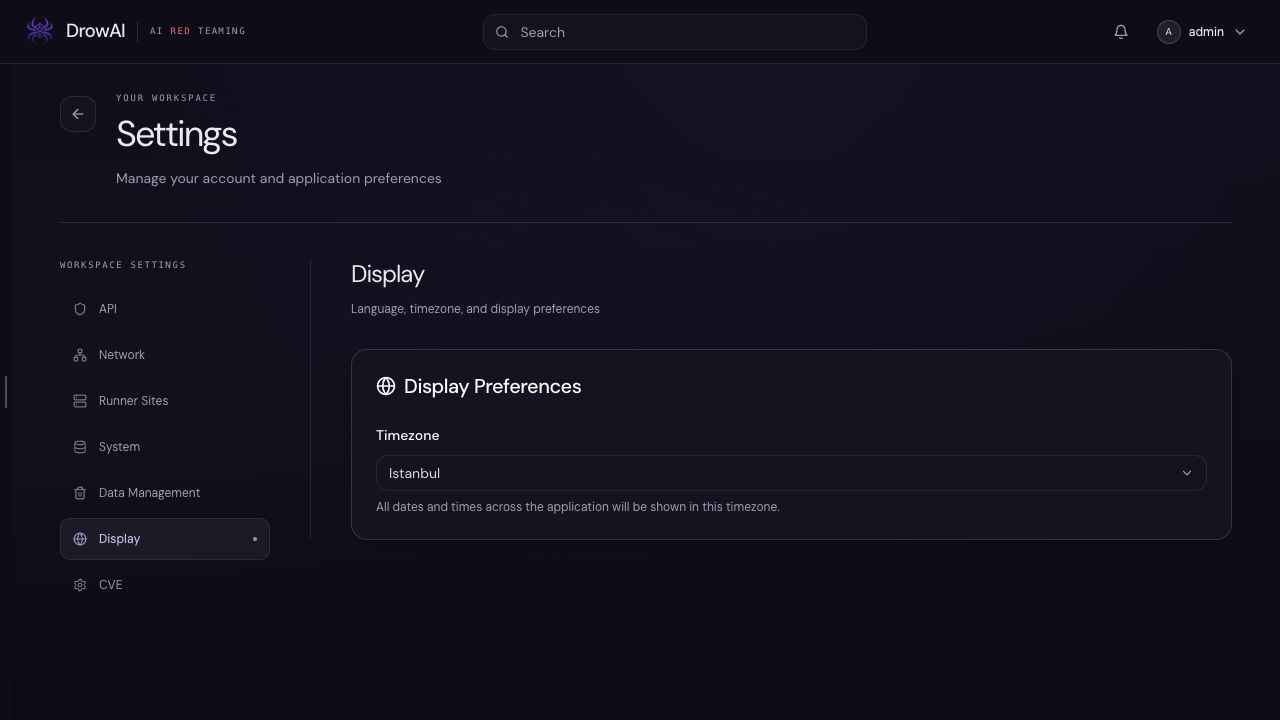

Annotated DrowAI Settings Display subtab
  1. Display settings
  2. Application timezone

CVE

The CVE subtab controls deployment-level CVE indexing behavior. It includes enable/disable, daily UTC sync schedule, live status, last successful sync, manual sync, cancellation of a running sync, and purge/reinstall of local CVE index data.

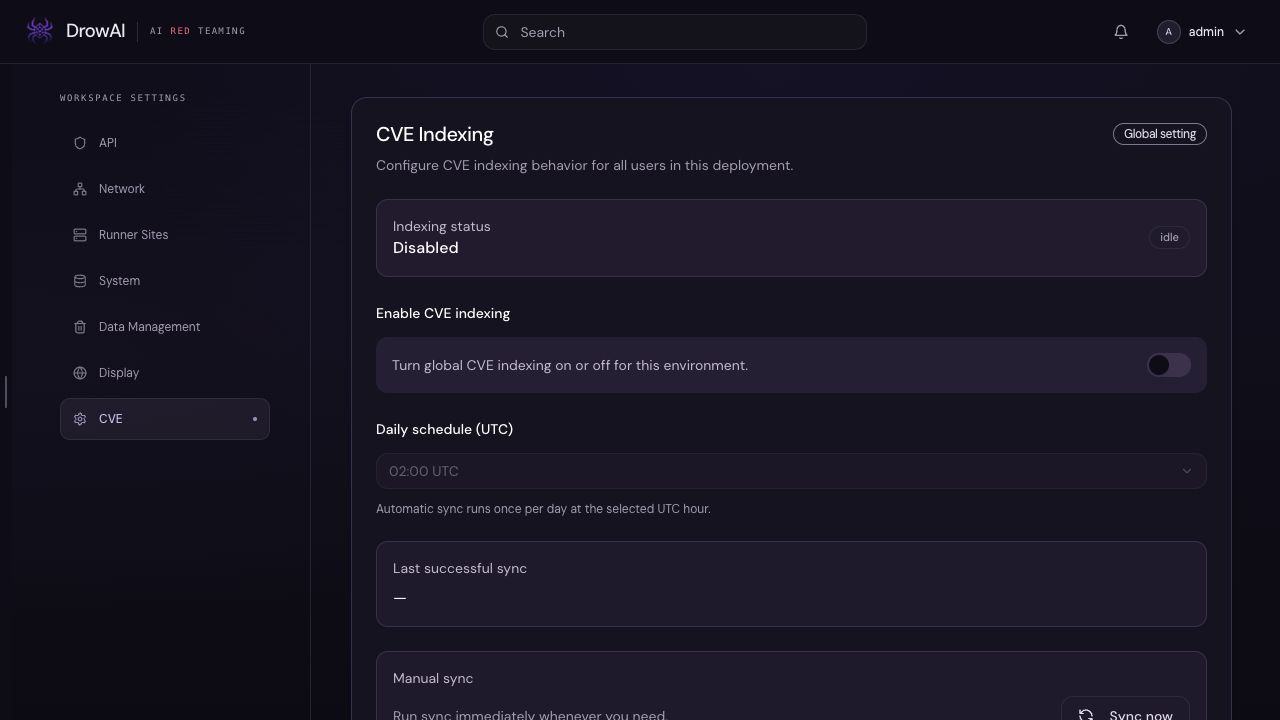

Annotated DrowAI Settings CVE subtab
  1. Indexing status
  2. Enable indexing
  3. Daily UTC schedule and last sync

Public-safe handling

Settings screenshots can expose account identity, provider configuration, API-key state, retention policy, timezone, CVE indexing state, and deployment policy. Public documentation should use approved lab settings only and fully mask credentials or external service configuration before publication.
